4-Stroke OHV, 1 Cylinder/2 Valves
Type
57.2 cc (3.49 cubic in)
Displacement
5,000-6,000 RPM
Full Throttle RPM Range
2.3HP (1.7 kW)
Rated Power
Details
Description

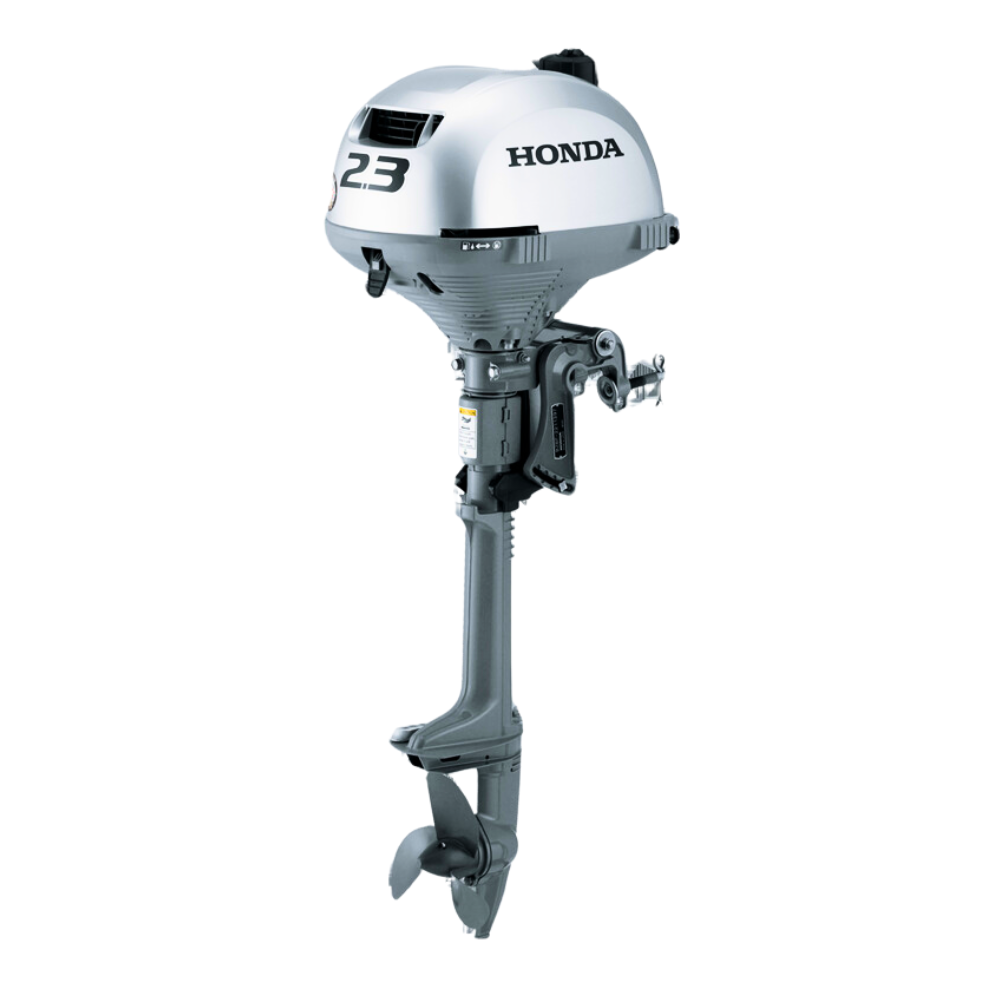

Honda 2.3Hp Engine 4 Stroke Short and Long Shaft
| ENGINE BF2.3 |
| Type: 4-Stroke OHV, 1 Cylinder/2 Valves |
| Displacement: 57.2 cc (3.49 cubic in) |
| Bore & Stroke: 45 mm x 36 mm (1.8 x 1.4 inches) |
| Full Throttle RPM Range:5,000-6,000 RPM |
| Rated Power: 2.3HP (1.7 kW) |
| Cooling System: Forced Air |
| Ignition System: Transistorized |
| CARB Rating (California): 3-STAR, ultra-low emission |
| Fuel: Unleaded 86 octane |
| Fuel Tank Capacity : .29 US gal (1.1L) |
| Starting System: Recoil |
| Exhaust: Under Water, Above Propeller |
| Lubrication: Oil Slinger System |
| Trim Range: 4-Stage: 5°, 10°,15°, 20° |
| Tilt Range : 75° |
| DRIVE: BF2.3 |
| Gear Ratio: 2.42:1 |
| Steering Angle: 360° pivot |
| EQUIPMENT: BF2.3 |
| Propeller: 3-Blade Plastic |
| Diameter x Pitch: 7.25 x 4.75 inches |
| DIMENSIONS: BF2.3 |
| Overall Width: 285 mm / 11.2 in |
| TRANSOM HEIGHT: BF2.3 |
| S Type: 418 mm / 16.5 in |
| L Type: 571 mm / 22.5 in |
| DRY WEIGHT: BF2.3 |
| S-Type: 13 kg / 29.5 lbs |
| L-Type: 14 kg / 31 lbs |
Specifications
| Type | 4-Stroke OHV, 1 Cylinder/2 Valves |
|---|---|
| Displacement | 57.2 cc (3.49 cubic in) |
| Full Throttle RPM Range | 5,000-6,000 RPM |
| Rated Power | 2.3HP (1.7 kW) |
| Cooling System | Forced Air |
| Ignition System | Transistorized |
| Fuel | Unleaded 86 octane |
| Fuel Tank Capacity | .29 US gal (1.1L) |
| Starting System | Recoil |
| Exhaust | Under Water, Above Propeller |
| Lubrication | Oil Slinger System |
| Trim Range | 4-Stage: 5°, 10°,15°, 20° |
| Tilt Range | 75° |
| DRIVE | BF2.3 |
| Gear Ratio | 2.42:1 |
| Steering Angle | 360° pivot |
| EQUIPMENT | BF2.3 |
| Propeller | 3-Blade Plastic |
| Diameter x Pitch | 7.25 x 4.75 inches |
| DIMENSIONS | BF2.3 |
| Overall Width | 285 mm / 11.2 in |
| TRANSOM HEIGHT | BF2.3 |
| S Type | 418 mm / 16.5 in |
| L Type | 571 mm / 22.5 in |
| DRY WEIGHT | BF2.3 |
| S-Type | 13 kg / 29.5 lbs |
| L-Type | 14 kg / 31 lbs |
